| 参数及功能 | FM-CS1220 |
| 最大放卷直径 | 1524mm |
| 最大收卷直径 | 1524mm |
| 膜卷最大直径 | 400mm |
| 印版重复印刷长度 | 350mm—1100mm |
| 最大卷筒纸宽度 | 1220mm |
| 最大印刷宽度 | 1200mm |
| 齿轮规格 | 板材无间距要求 |
| 润滑系统 | 自动润滑系统 |
| 电源需求 | 380V 三相 50Hz |
| 机器设计速度 | 0-300 米/分钟 |
| 印版厚度 | 1.7 毫米 |
| 胶带厚度 | 0.5 毫米 |
| 基材 | 30-350 克/平方米 |
| 齿条 | 实心合金铸造墙板 |
| 套准精度 | ◆ 机器正常匀速运行时，套印精度±0.1MM |
| ◆ 机器加速从10M/分钟到180M/分钟，套印精度±0.12MM | |
| 机器减速从180M/分钟到10M/分钟，套印精度±0.12MM | |
| 自动检测断纸保护停机 | YES |
| 缺纸自动报警减速停机 | YES |
| 预置输出完成自动停机 | YES |
| 可实现计米计米功能 | YES |
| 可实现多点微调 | YES |
| 传动齿轮 | 整机传动齿轮采用高精度磨齿，材质为20CrMnTi，硬度为45 |
| 张力控制范围 | （40-110）KG |
| 张力控制精度 | /-0.5KG |
| 整机颜色 | Peak light standard |
Ⅶ. Main features of the equipment.
1.Petal loading, mesh roller and plate roller are quick change structure;
2.Printing department "fool" operation, plate roller, mesh roller pressing position once in place, no adjustment;
3.Plate full servo shaftless drive, automatic pre-registration, saving time and material;
4.The registration condition remains unchanged in the process of speed up and speed down;

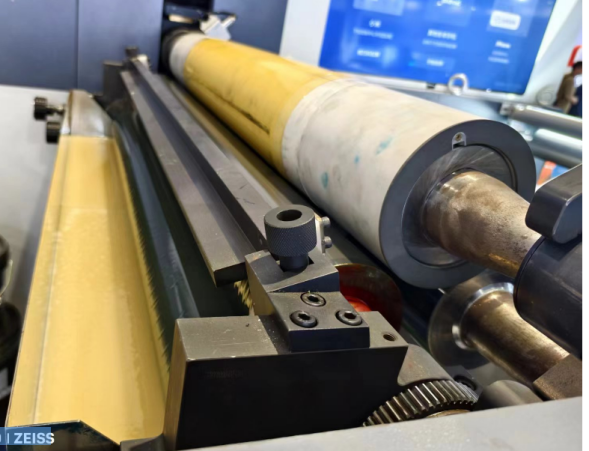

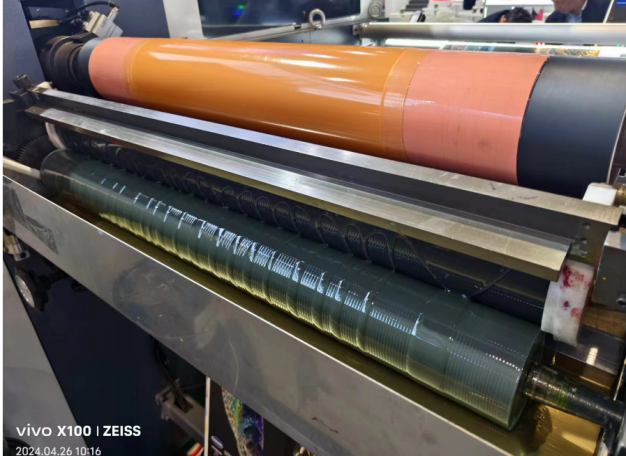

5.High speed new ink scraper system;
6.120m/min high-speed head-to-head butt type non-stop paper receiving unit;
7.200 m/min surface winding non-stop winding unit;
with uv oil printing
Ⅱ. Basic configuration
- 1.non-stop release unit 1 set

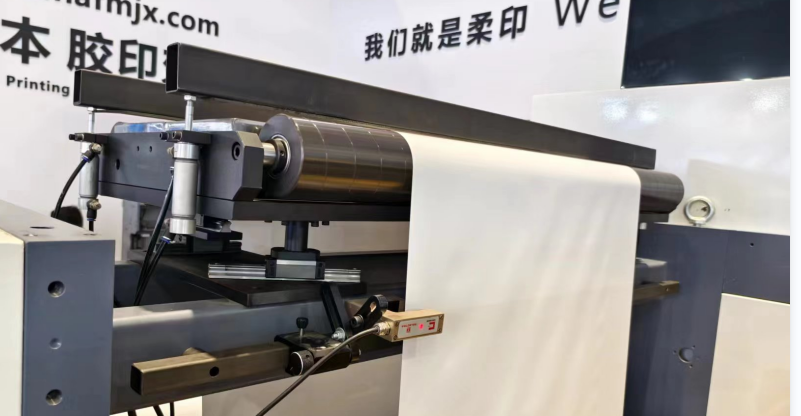

- automatic correction system 1 set

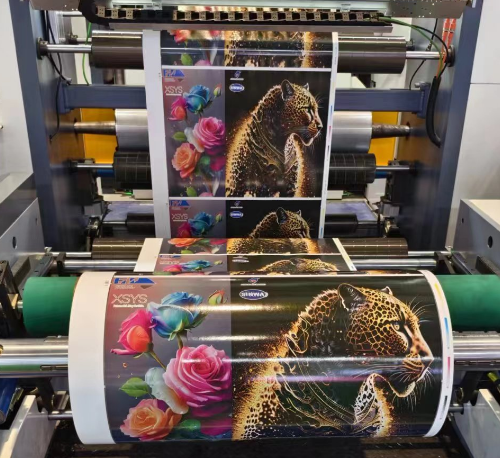

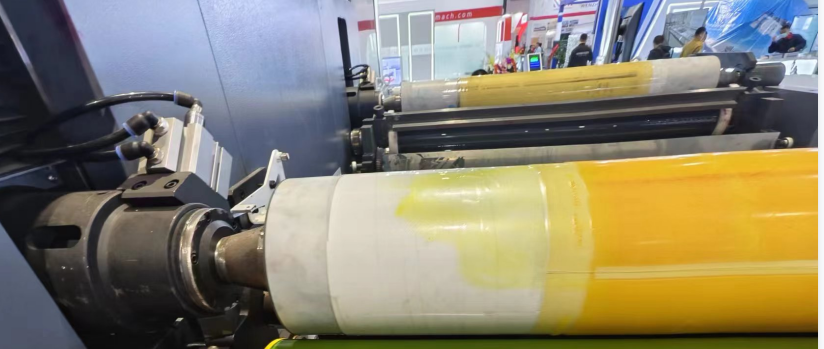

4.printing color 6 groups (shaftless drive petal sleeve structure 6 color for cold pressing color group)
printing group
servo motor control

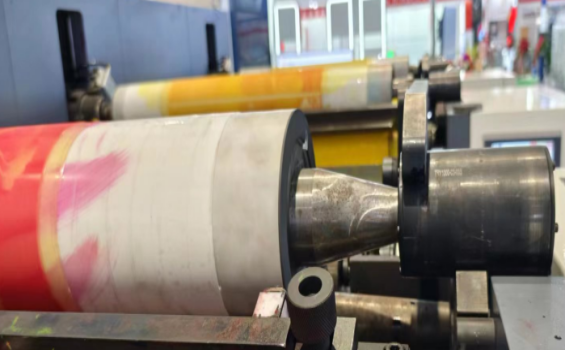

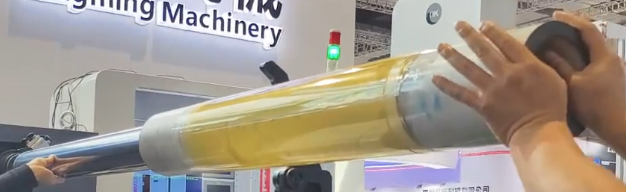

change the sleeve

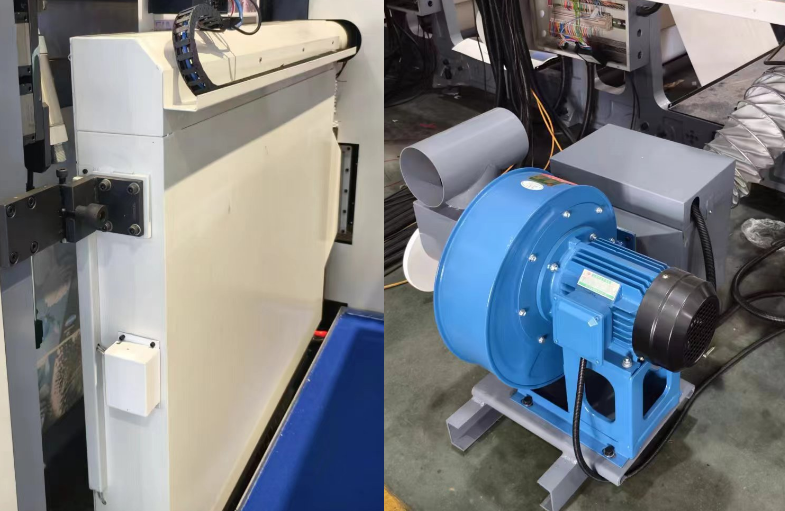

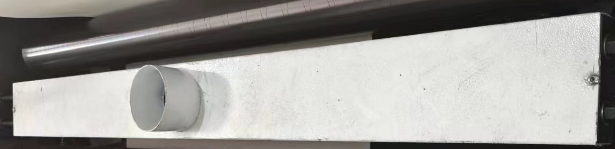

- drying system 1 set (hot air /UV)
7.after printing out a set of paper tension system
- 1 set of rear traction system
10.synchronous full inspection system 1 set
11.non-stop winding device 1 set

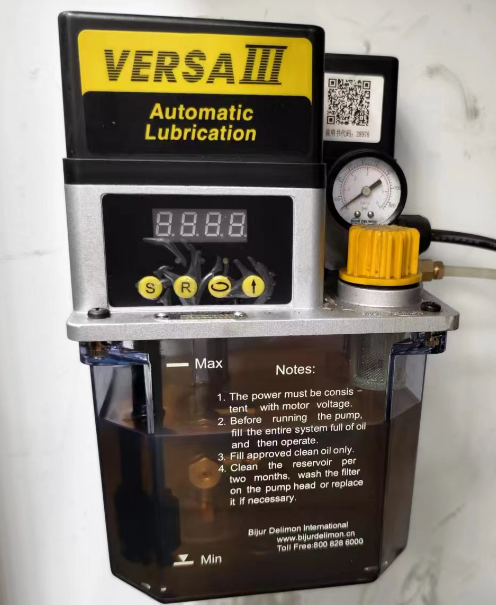

12.1 set of lubrication system

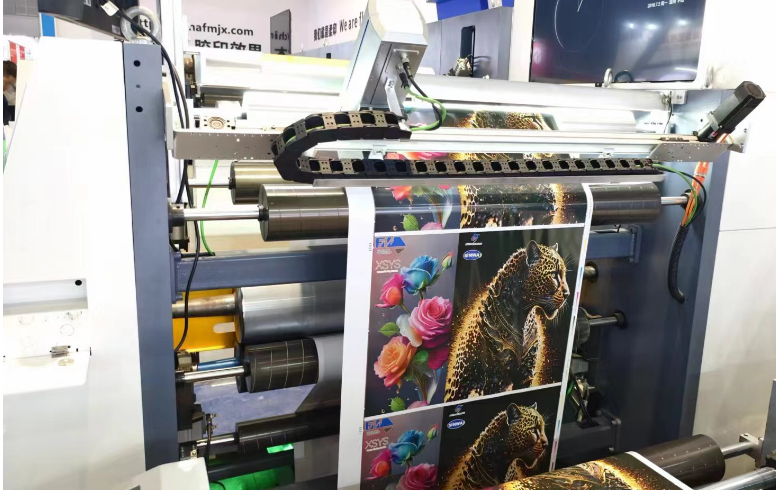

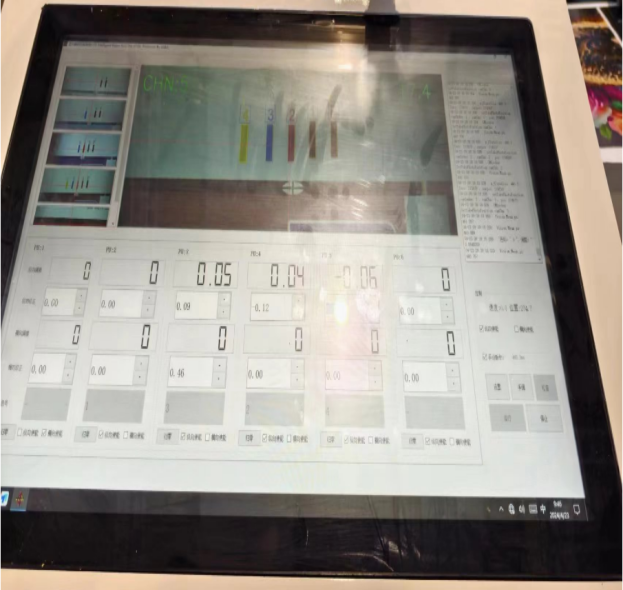

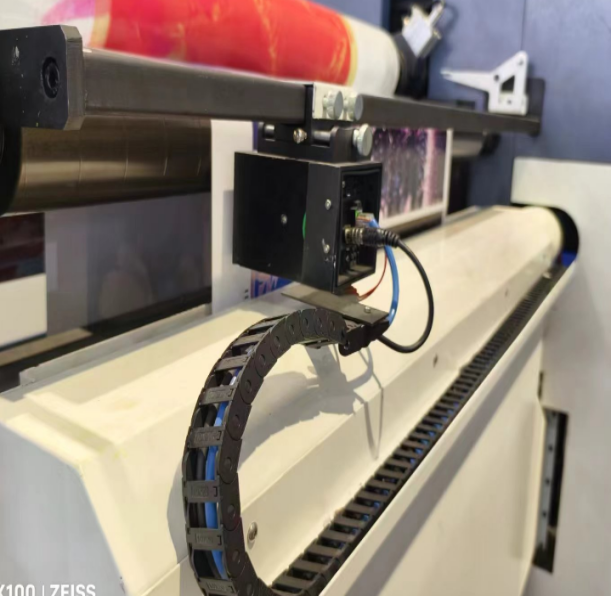

- 1 set of visual automatic registration system

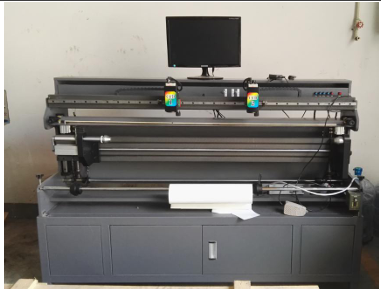

- 14. Plate Mounter
15.Web cleaner and anti static unit
16.Corona Treater
